LO Series - LaserScan 2D/3D
Laser Perforation Model LaserScan 2D/3D
From straight lines to any shape you can draw
Spark Machinery laser systems are engineered to microperforate continuously moving films with high-precision CO₂ laser sources. The same technology can also cut, pre-cut and score the film. Scoring weakens the material in a controlled way without perforating it, which is how easy-opening solutions are made.
With precise microperforations, laser technology is widely used in Modified Atmosphere Packaging (MAP). The holes regulate airflow and gas exchange through the film, extending shelf life and preserving product quality.
A scanning laser, not only machine direction
LaserOne Line and LaserOne Track perforate continuous lines in machine direction. LaserOne Scan goes further: galvanometric mirrors move the beam freely inside a working field, so the laser can work across the web and draw whatever the recipe describes. Cross-web perforation lines, holes arranged in circles or grids, custom drawings and cross pre-cuts for easy opening all come from the same machine.
LaserOne Scan is one model in two configurations. The 2D version uses two galvo axes and is the choice for precision and speed. The 3D version adds a third axis that drives the focus, so it can cover much larger areas.

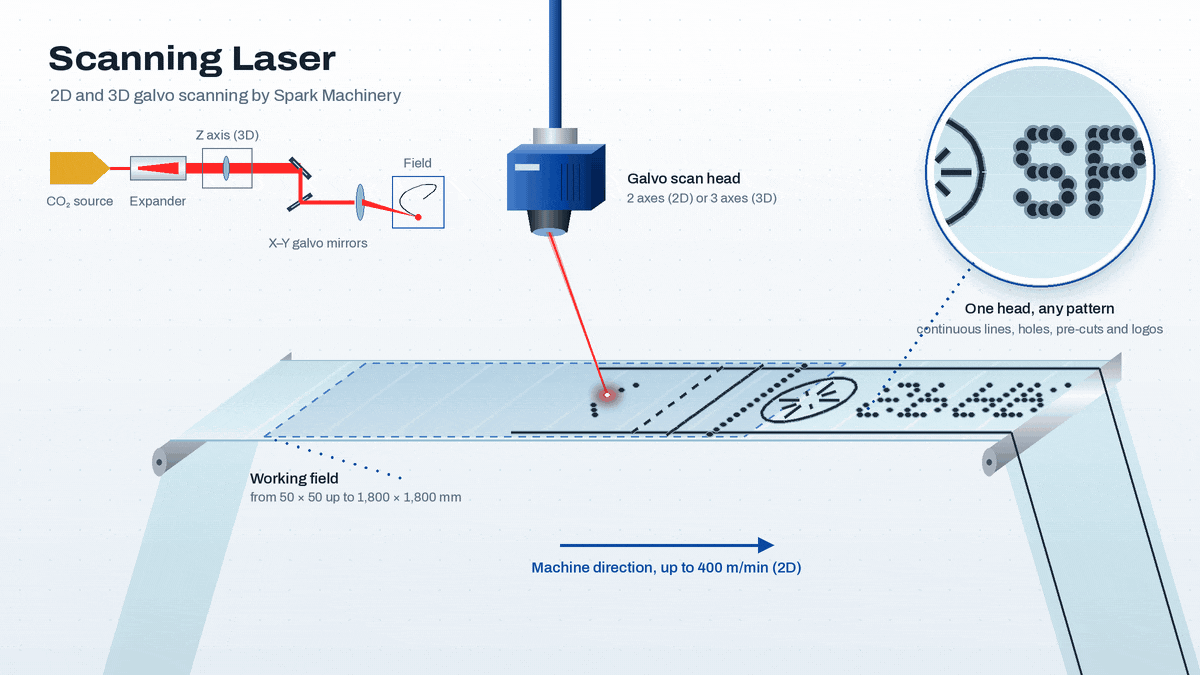

Functioning of LaserScan 2D/3D model
How it works
The CO₂ laser source emits light pulses at a predetermined frequency. A beam expander collimates and widens the beam, two galvo mirrors steer it along the X and Y axes, and a focusing lens concentrates it onto a small, precisely defined area of the moving film. In the 3D version, a motorised Z axis moves the focus as the beam travels across the field. The energy of the beam sublimates the material, opening a clean microperforation with no contact and no tool wear.
Integration

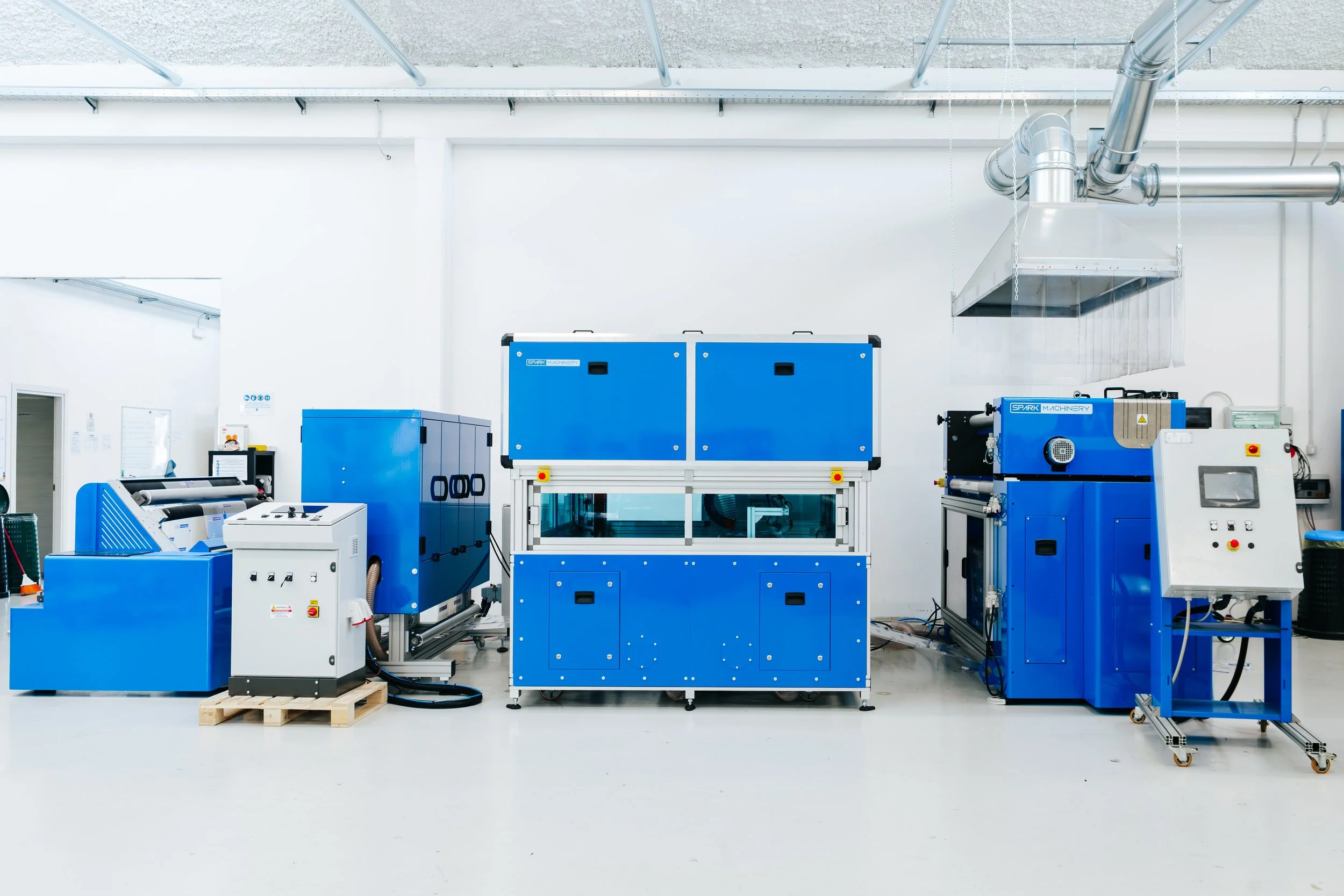

LaserOne Scan is designed as a unit to be integrated into film converting lines such as slitter-rewinders, extruders, printing machines and rewinders.
Working areas
Drawn to scale. Select a working area to see its minimum hole size and speed.
2D, two galvo axes
Four field sizes, for precision and speed
3D, three galvo axes
Large fields with a motorised focus axis
- Configuration
- 2D
- Working area
- 50 × 50 mm
- Minimum hole
- Ø 60 µm*
- Speed
- Up to 400 m/min*
* This value depends on the type of material, application and machine configuration.
† On the 3D configuration, the maximum speed depends on the focus travel the requested job needs: the more the beam has to refocus across the field, the lower the speed.
Key features
2-axis galvo scanner (2D)
Two galvanometric mirrors steer the beam along X and Y inside fields from 50 × 50 to 300 × 300 mm. Compact fields keep the spot small: holes from 60 µm on 50 × 50 mm and from 100 µm on larger fields, at speeds of up to 400 m/min.
3-axis galvo scanner (3D)
A third, motorised axis moves the focus while the beam travels, so the spot stays focused across working areas up to 1,800 × 1,800 mm. Combined with machine vision, focusing is fully automatic.
Automation
Patterns, hole sizes and laser parameters are stored in recipes, so a new job starts in minutes. The software controls every head independently and corrects the holes automatically.
Camera-based quality control (optional)
A vision system inspects the holes in real time, measuring free area, deviation from the theoretical diameter and the melting ring. When it finds a deviation, it adjusts laser power and pulse duration, and on 3D also the focus, without stopping production. A quality report is saved for each reel.
Industry 4.0 and remote support
Built for Industry 4.0, the machine is managed from a touch-screen panel where your operators store every perforation parameter as a recipe, and it connects to your factory systems to exchange production data with your MES or ERP. Through remote assistance our technicians check parameters, diagnose faults and update the software without waiting for a site visit, and support your team live during commissioning or when a new recipe is set up.
Made for modified atmosphere packaging
Fresh produce keeps breathing after harvest. Micro-perforation lets packaging exchange a controlled amount of oxygen and carbon dioxide, so the atmosphere inside stays balanced and shelf life gets longer.
Technical data
| 2D | 3D | |
|---|---|---|
| Laser source | CO₂ | |
| Laser source power | 80–1,000 W* | |
| Galvo axes | 2 (X, Y) | 3 (X, Y + Z focus) |
| Working area | 50 × 50, 110 × 110, 200 × 200 or 300 × 300 mm | Up to 1,800 × 1,800 mm |
| Maximum speed | 400 m/min* | Lower than 2D* |
| Minimum hole diameter | Ø 60 µm on 50 × 50 mm Ø 100 µm on larger fields* | Ø 150 µm* |
| Focus | Fixed focal plane | Motorised Z axis, fully automatic with machine vision |
| Perforation | Cross web and machine direction | |
| Patterns | Lines, custom shapes, drawings, cross pre-cuts | |
| Wavelength | 9.3 µm, 9.6 µm, 10.2 µm or 10.6 µm* | |
| Cooling system | Liquid | |
| Pulse frequency | Max. 200 kHz | |
| Minimum firing time | 4 µs | |
* This value depends on the type of material, application and machine configuration.
Options
- Camera-based hole quality control
- Auto focus (2D)
- Dancer roll
- Fume filtration system
- Trolley
Materials
Primary Applications
Custom MAP patterns
Targeted Perforation for Fresh Produce
Micro-perforations from 60 µm placed exactly where the pack needs to breathe: grids, circles and zones for Modified Atmosphere Packaging (MAP).
- Hole patterns designed around the product and pack format
- Calibrated gas exchange for salads, berries and vegetables
- Large-format patterns up to 1,800 × 1,800 mm with 3D
Consumer convenience
Cross Pre-Cuts & Easy-Open Shapes
Tear lines, notches and custom shapes across the web, cut or scored without perforating the material.
- Cross-web pre-cuts for pouches, sachets and stick packs
- Scoring that weakens the material in a controlled way
- Contactless process with no blade wear or dust
Branding & design
Drawings, Logos & Graphics
Decorative shapes and logos drawn with holes or scoring, changed by simply loading a new recipe.
- Any shape inside the working field
- No tooling to change between designs
- Functional and decorative patterns on the same machine
Advantages & Benefits
Cross-web capability
Beyond Machine Direction
X and Y galvo mirrors move the beam freely inside the working field, so the laser works across the web as well as along it.
Precision & speed (2D)
Smallest Holes, Highest Speed
The 2D configuration opens holes from 60 µm on a 50 × 50 mm field and reaches up to 400 m/min*, the fastest in the Spark laser range.
Large format (3D)
Automatic Focus up to 1,800 mm
A motorised Z axis keeps the beam in focus across working areas up to 1,800 × 1,800 mm, fully automatic with machine vision.
Flexibility
New Pattern, No New Tooling
Every pattern is a recipe. Switch between lines, shapes, pre-cuts and drawings from the touch screen in minutes.
* This value depends on the type of material, application and machine configuration.
Compare the laser range
| Machine direction | Scanning | |||
|---|---|---|---|---|
| Feature | LaserOne Line | LaserOne Track | Scanning laser 2D | Scanning laser 3D |
| Beam delivery | Fixed head, fixed beam | Fixed head with motorised single-axis galvo | Galvo scan head, 2 axes (X, Y) | Galvo scan head, 3 axes (X, Y + Z focus) |
| Perforation direction | Machine direction | Machine direction | Cross web and machine direction | Cross web and machine direction |
| Patterns | Continuous lines | Continuous lines | Continuous lines, holes, custom shapes, drawings, cross pre-cuts | Continuous lines, holes, custom shapes, drawings, cross pre-cuts |
| Maximum speed | 150 m/min* | 380 m/min* | 400 m/min* | Depends on focus† |
| Hole diameter | Ø 50–200 µm* | Ø 50–200 µm*, perfectly round at full speed | From Ø 60 µm* on 50 × 50 mm, Ø 100 µm on 110 and 200 mm, Ø 120 µm on 300 mm | From Ø 150 µm* on 600 × 600 mm, Ø 250 µm on 1,800 × 1,800 mm |
| Working area | One line per head | One line per head | 50 × 50 to 300 × 300 mm | Up to 1,800 × 1,800 mm |
| Focus | Fixed, auto focus optional | Fixed, auto focus optional | Fixed, auto focus optional | Motorised Z axis, automatic with machine vision |
| Machine vision | Optional | Standard | Optional | Optional |
| Functions | Microperforation, cutting, pre-cutting, scoring | Microperforation, cutting, pre-cutting, scoring | Microperforation, cutting, pre-cutting, scoring | Microperforation, cutting, pre-cutting, scoring |
| Laser source | CO₂, 80–1,000 W* | CO₂, 80–1,000 W* | CO₂, 80–1,000 W* | CO₂, 80–1,000 W* |
| Ideal for | Entry-level laser perforation on standard-speed lines | High-output lines that need round holes at speed | Precise custom patterns at high speed | Large-format patterns and wide webs |
* This value depends on the type of material, application and machine configuration.
† On the scanning laser 3D, the maximum speed depends on the focus travel the requested job needs: the more the beam has to refocus across the field, the lower the speed.
