Precision Micro-Perforation for Advanced Atmospheric Control
High-precision micro-perforation systems utilizing CO2 laser, hot needle, and cold needle technologies to achieve controlled hole diameters from 50 to 500 microns. Optimize Gas Transmission Rates (GTR) and Moisture Vapor Transmission Rates (MVTR) for Modified Atmosphere Packaging (MAP), technical films, and non-wovens at web speeds up to 300 m/min with micrometric repeatability.
Overview of our Micro Perforating Machines
Spark Machinery provides a sophisticated range of laser and needle micro-perforation systems designed to bridge the gap between material durability and functional breathability. These advanced solutions are engineered for high-speed efficiency, offering manufacturers the ability to fine-tune gas exchange and moisture vapor transmission rates across diverse substrates including PE, PP, and high-barrier laminates. From extending the shelf life of food products through Modified Atmosphere Packaging (MAP) to developing specialized medical and automotive technical textiles, our machines deliver the sub-millimeter accuracy and operational stability needed to enhance product performance while reducing production waste.

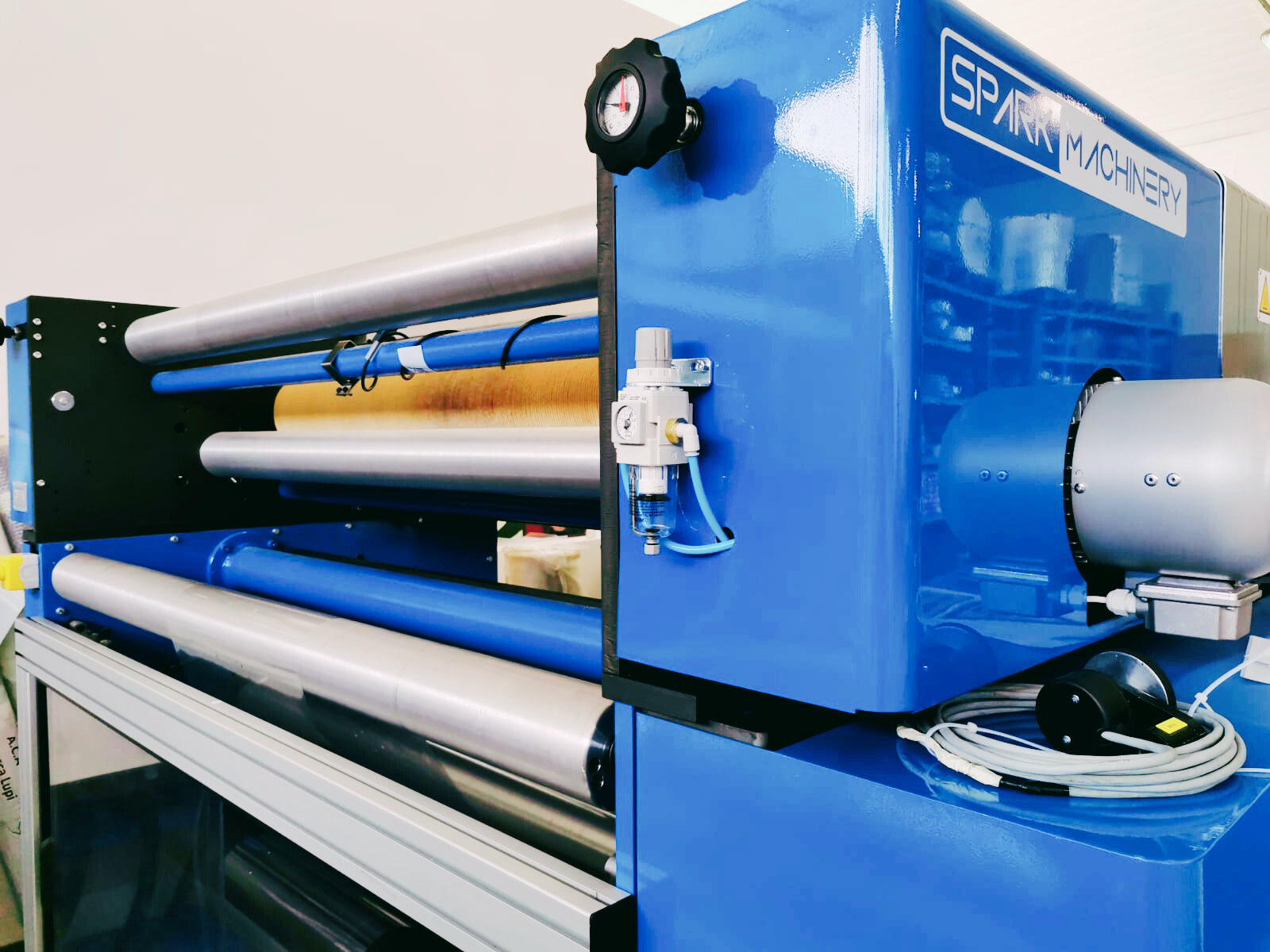

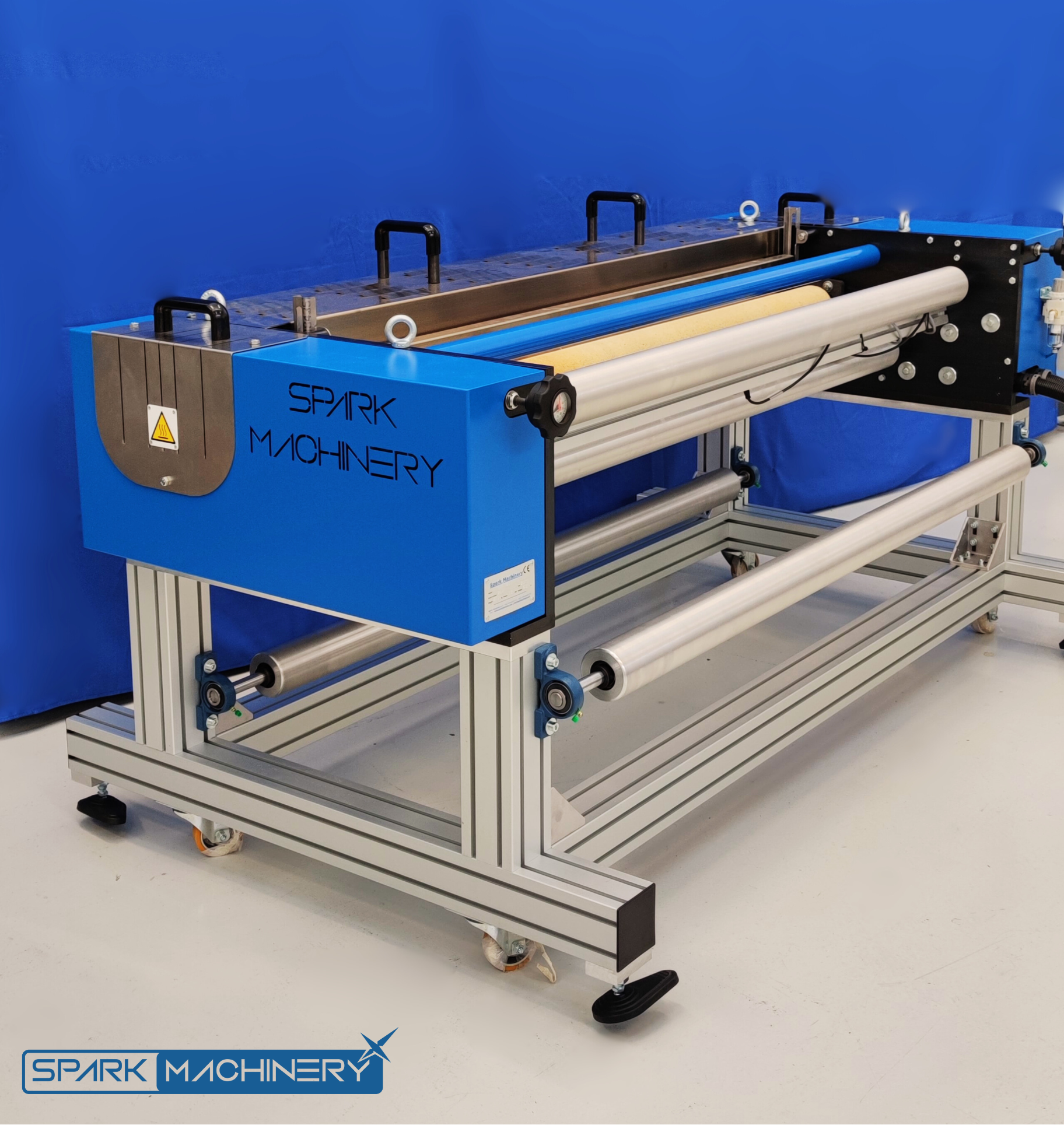

Hot Needle Microperforators
HN Series: Ideal for applications requiring precise, clean holes, the HN series utilizes heated needles to melt material, creating holes from 200µm to 2mm. This technology is highly versatile, featuring interchangeable cylinders for customized patterns.
| Parameter | Hot Needle Perforators (HN Series) |
|---|---|
| Perforation Speed (material/configuration dependent) | Up to ~200 m/min |
| Hole Sizes | Ø 100µm (model HN200-PL) to Ø 2mm |
| Supported Materials | Thermoplastic films (PE, PP, BOPP, PET), non-wovens, textiles, automotive materials |
| Patterns | Defined by interchangeable cylinders; customizable for tracks or full surface |
| Precision | High precision for clean, precise holes; limited by needle dimensions |
| Repeatability Metrics | Good consistency due to mechanical nature, subject to needle wear |

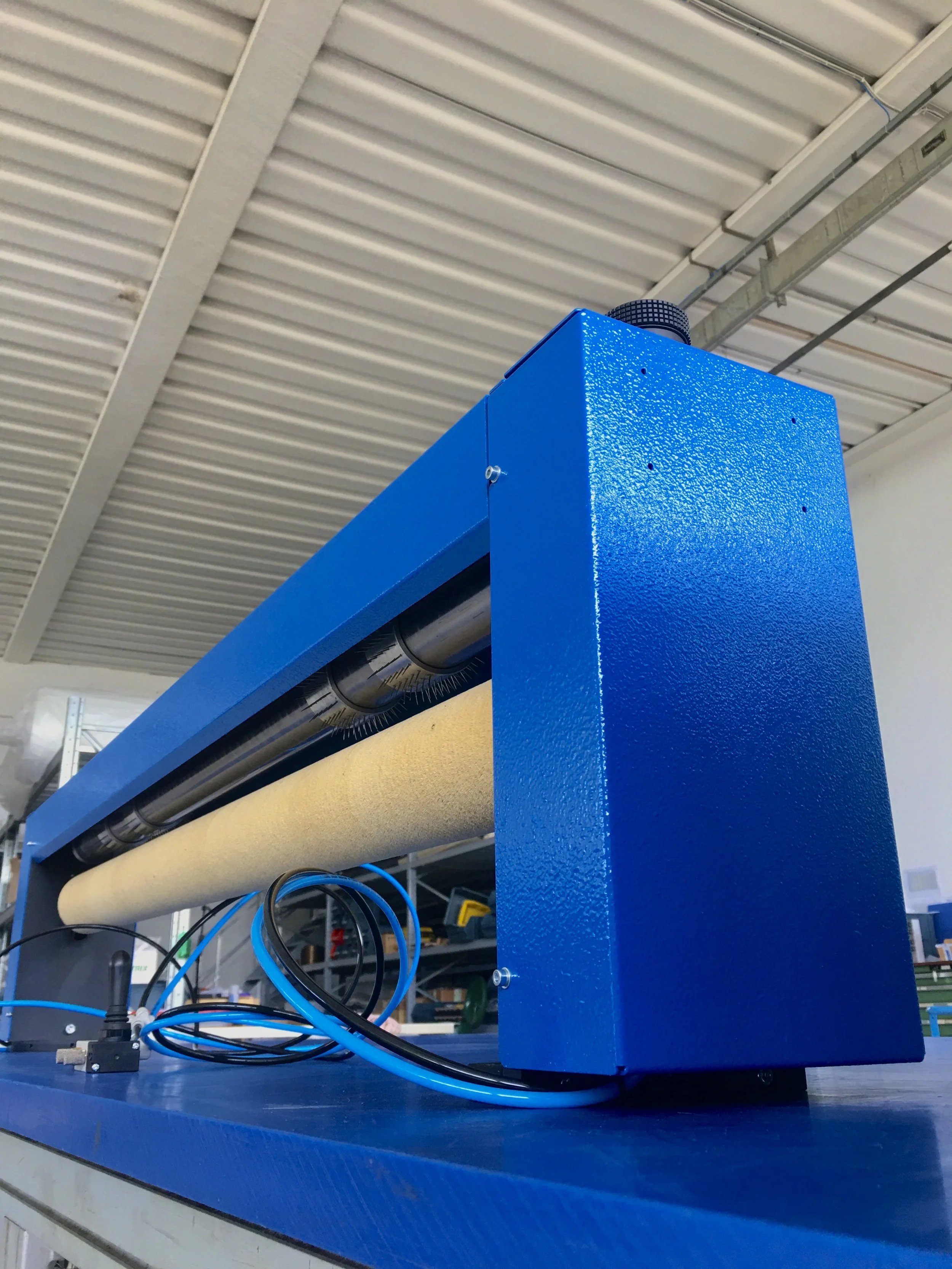

Cold Needle Microperforators
CN Series: A cost-effective and efficient solution, the CN series perforates thin materials without heat, preserving material characteristics. These machines create holes from 80µm to 1.8mm.
| Parameter | Cold Needle Perforators (CN Series) |
|---|---|
| Perforation Speed (material/configuration dependent) | Up to ~400 m/min |
| Hole Sizes | Ø 80µm to Ø 1.8mm |
| Supported Materials | PE, LDPE, HDPE, laminates, food-grade PVC, aluminum, paper, wood, non-wovens |
| Patterns | Defined by interchangeable cylinders; customizable for tracks or full surface |
| Precision | Precise and homogeneous perforations |
| Repeatability Metrics | Good consistency; robust for high drilling densities; subject to needle wear |

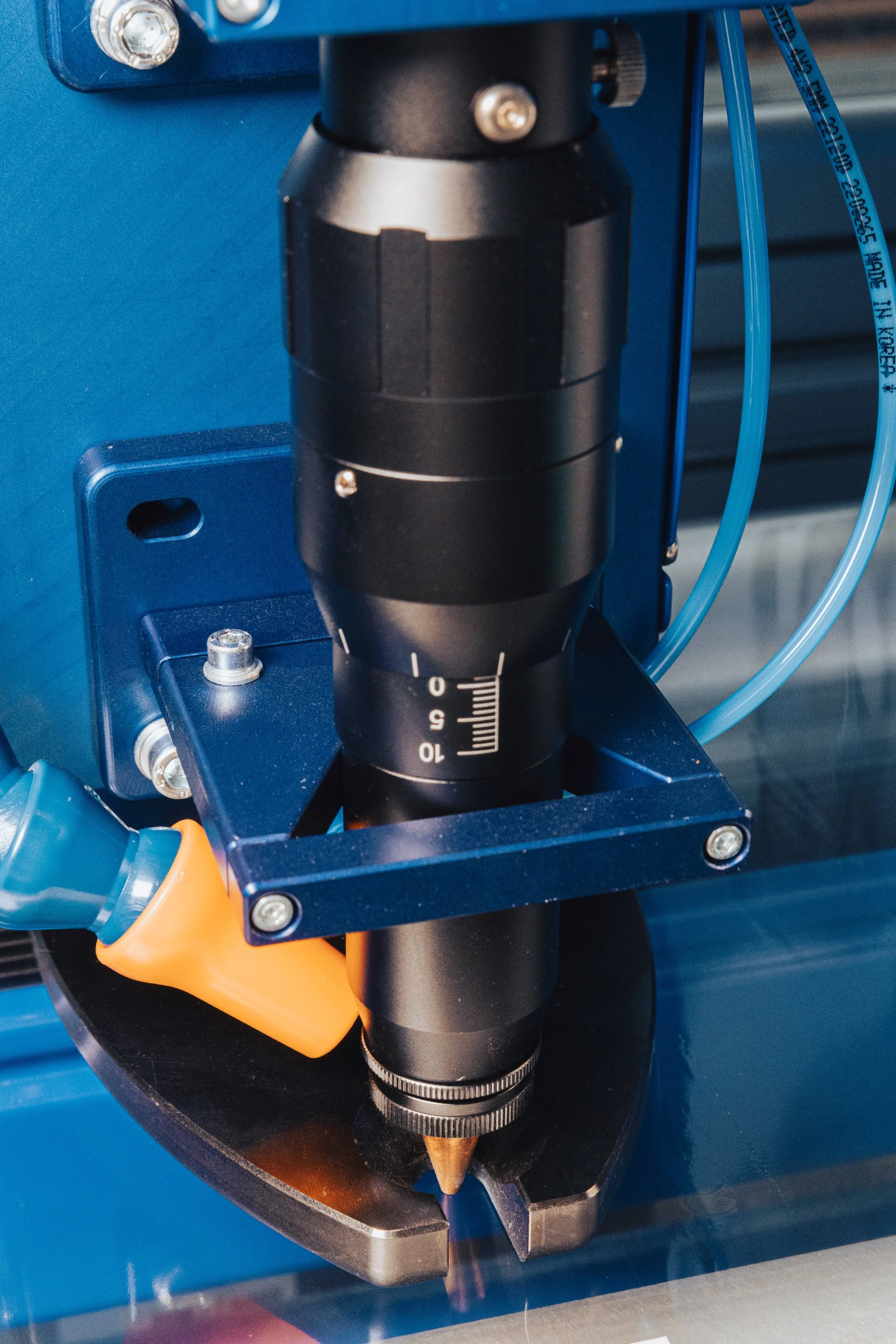

Laser Microperforators
LO Series: This advanced, non-contact solution precisely creates micro-holes using focused laser beams. It ablates material for superior hole quality and maintains material integrity, without distortion. Ideal for delicate films and complex patterns, these machines typically generate holes from 40µm to 200µm, offering unmatched control and versatility.
| Parameter | Laser Perforators (LO Series) |
|---|---|
| Perforation Speed (material/configuration dependent) | Up to ~380 m/min (LO-S40 model) |
| Hole Sizes | Min. Ø 40µm |
| Supported Materials | PE, LDPE, HDPE, PP, BOPP, CPP, PLA, non-wovens, laminates, food-grade PVC, foils |
| Patterns | Highly flexible, digitally controlled; micro-holes, pre-cuts, scoring, complex shapes, logos |
| Precision | Unparalleled precision (software-controlled, non-contact); extremely high accuracy in hole size and placement |
| Repeatability Metrics | Unparalleled repeatability; no tool wear; precise control of hole properties for consistent performance |
What is Micro Perforation?
Micro-perforation is the process of creating a multitude of extremely small, precisely engineered holes in a material. These microscopic holes, often measured in micrometers (µm), are generally imperceptible to the naked eye but collectively alter the material's properties.
How it Works:
The primary methods for achieving micro-perforation include:
-
Cold Perforation: Needles pierce the material at ambient temperature, producing clean, precise holes. This is ideal for materials sensitive to heat.
Hot Perforation: Heated needles melt through the material, often creating a slightly raised rim around the hole. This can result in a more defined opening and is suited for specific material types.
-
Laser Perforation: A highly focused laser beam precisely vaporizes minuscule sections of the material, creating very accurate holes with minimal material disruption. This technique offers exceptional control over hole size and intricate patterns.
The exact pattern, density, and size of these micro-perforations are meticulously controlled to achieve desired functional outcomes.
Relevance for Packaging:
Micro-perforation is vital in modern packaging, boosting product preservation, safety, and consumer convenience. Key applications include:
-
Enables precise gas exchange (e.g., oxygen, CO2) to extend shelf life for fresh produce and baked goods by preventing moisture and regulating respiration.
-
Prevents condensation in clear packaging, maintaining product visibility for refrigerated items.
-
Creates weak points for convenient, clean tearing.
-
Allows controlled venting for off-gassing products (e.g., hot food), preventing package deformation.
Key benefits and advantages of Micro Perforation Technology
Micro-perforation provides significant technical advantages in material processing and packaging:
-
Precisely engineered apertures facilitate controlled gaseous exchange (O2, CO2, H2O vapor). This enables modified atmosphere packaging (MAP), regulating respiration rates and mitigating moisture condensation, crucial for extending perishable product viability.
-
Integration of hot needle, cold needle, or laser perforation systems into continuous-feed production lines allows for high-velocity in-line processing, minimizing bottlenecks and maximizing units per hour.
-
DPrecise control over perforation parameters minimizes material stress and defect rates. Concurrently, extended product shelf-life directly diminishes spoilage-related waste and associated logistics costs.
-
Controlled atmospheric environments inhibit microbial growth and enzymatic degradation, maintaining optimal organoleptic properties. This preserves product freshness, texture, and nutritional value, significantly extending market appeal and shelf-life.
Different types of Micro Perforation Machines
Cold needle micro perforation

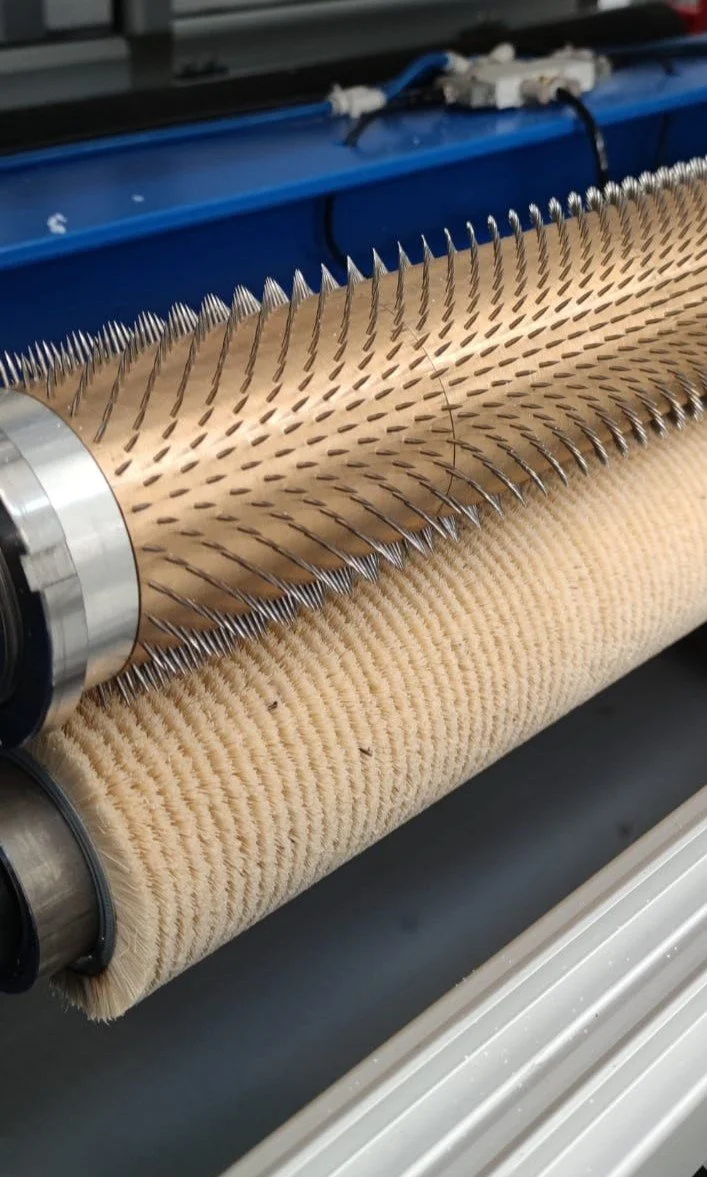

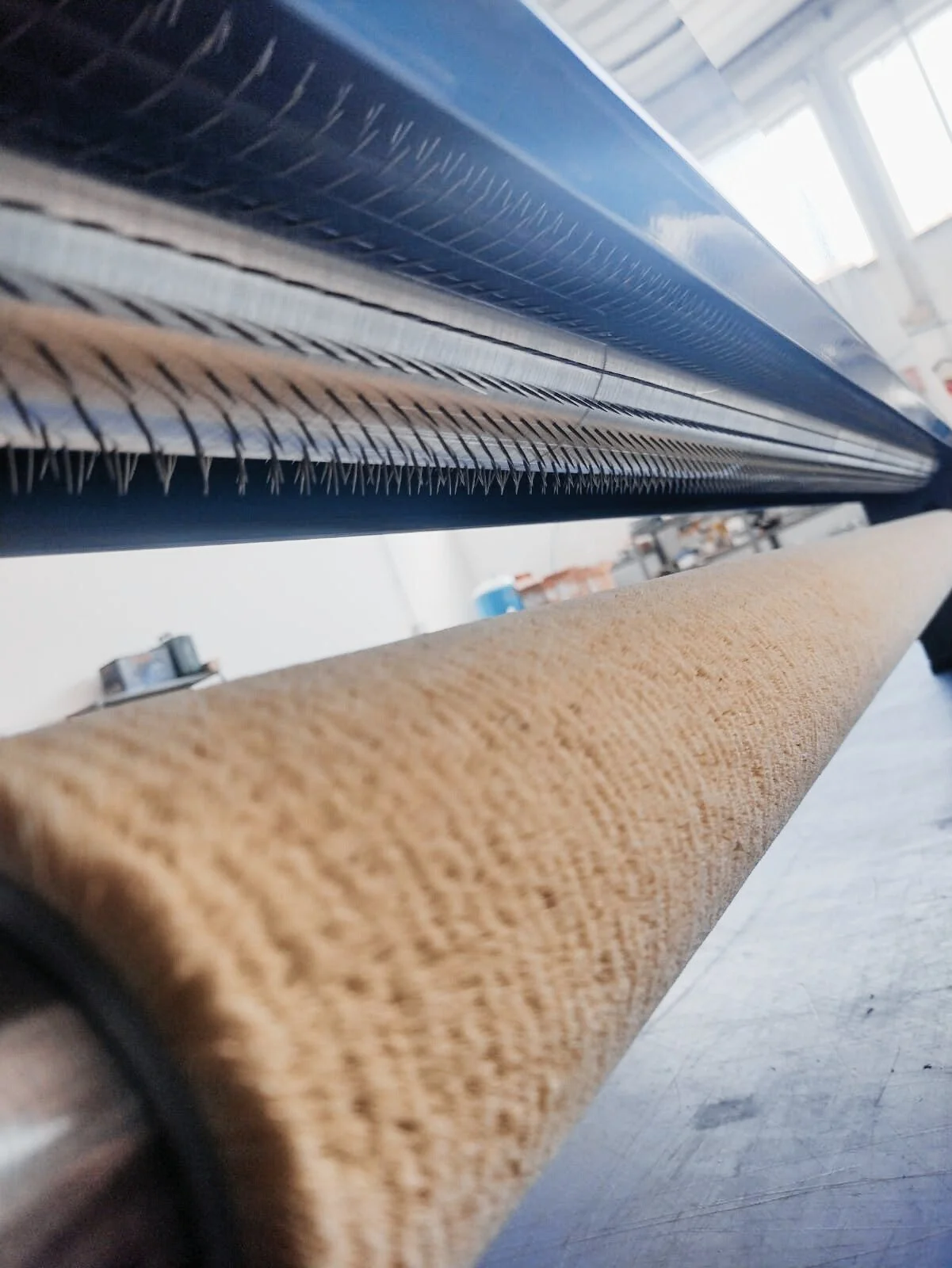

Cold perforation is a mechanical process forming tiny holes in materials without heat. Sharp needles on a roller physically pierce the material against a counter roller, with penetration depth precisely controlled. Unlike hot perforation, it doesn't melt, producing clean-pierced holes with slight burrs.
Predominantly used for:
Heat-Sensitive Materials: Prevents degradation in plastics, paper, or non-wovens.
Cost & Speed Efficiency: High-volume, fast process for wide webs.
Specific Hole Needs: Creates "one-way valve" effects or breathability without material alteration.
Common applications include fresh produce packaging, paper tear lines, and non-woven hygiene fabrics, due to versatility and easy integration into production lines.
Hot needle micro perforation
Hot perforation uses heated needles to create holes in materials. Technically, heated needles on a rotating cylinder melt through the substrate of the material, forming perfectly round holes with heat-sealed, welded edges. This fusion prevents tearing and ensures holes remain open, without releasing any dust during the process
It's predominantly used for:
Thermoplastic Films: Such as polyolefins (LDPE, PP) for clean, consistent holes.
Permanent Openings: Heat-sealed edges prevent re-closing, critical for consistent gas exchange.
Food Packaging: Extending shelf life of produce, baked goods, and ovenable films by controlling moisture/gas and preventing "ballooning."
Enhanced Strength: The molten ring strengthens the hole's integrity.
Laser micro perforation
Laser perforation is a non-contact process using a focused laser beam to create precise holes. The laser's energy ablates or melts material, forming clean, burr-free holes with minimal heat effect. Precise control over laser parameters ensures exceptional accuracy in hole size, shape, and pattern.
Widely used when:
High Precision & Small Holes: Ideal for micro-perforations (e.g., >=40µm) unmatched by mechanical methods.
Non-Contact Processing: Prevents material deformation or contamination.
Complex Patterns & Flexibility: Digital control allows rapid design changes.
Delicate/Abrasive Materials: Works on films, foils, paper, composites, and more.
Modified Atmosphere Packaging (MAP): Controls gas exchange for extended food shelf life.
Easy-Open Features & Aesthetics: Creates precise score lines and unique designs.
Why choose Spark Machinery for Micro Perforators?
Spark Machinery stands out through its unwavering commitment to Quality, Reliability, and Performance. Leveraging extensive experience, they deliver robust micro and macro perforating machines engineered for precision and efficiency across diverse industries.
A core USP is their customer-centric design approach, crafting tailored solutions that meet specific production demands. This bespoke engineering ensures optimal integration and functionality for each client.
Furthermore, Spark Machinery provides comprehensive support before, during, and after purchase and installation, including 24/7 after-sales service and remote assistance. This dedication extends to continuous innovation and rigorous quality control, solidifying their reputation as a trusted partner delivering not just machinery, but complete, high-performance solutions.

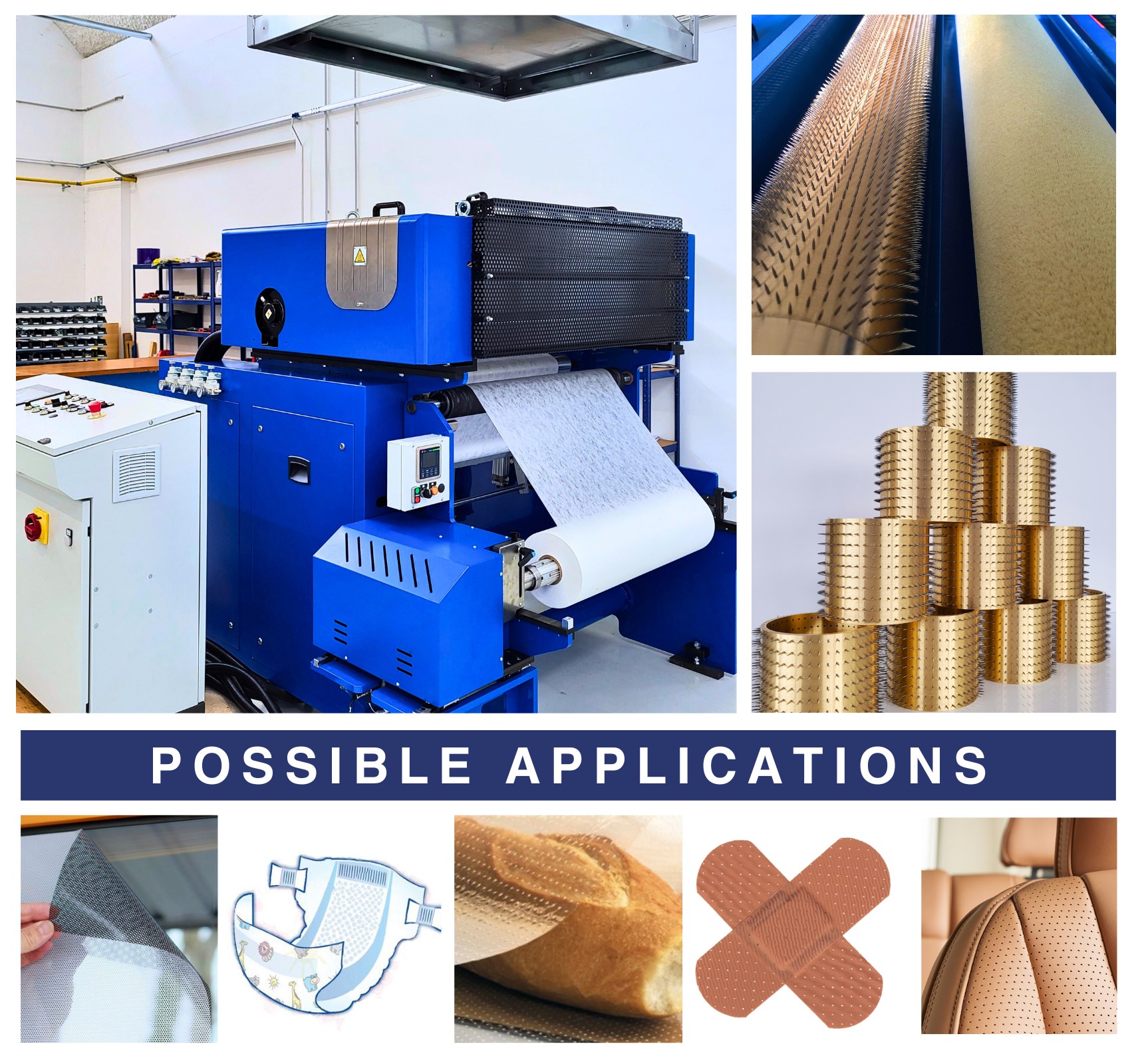

Applications of Micro Perforators
Micro-perforators are pivotal across diverse industries, optimizing material functionality:

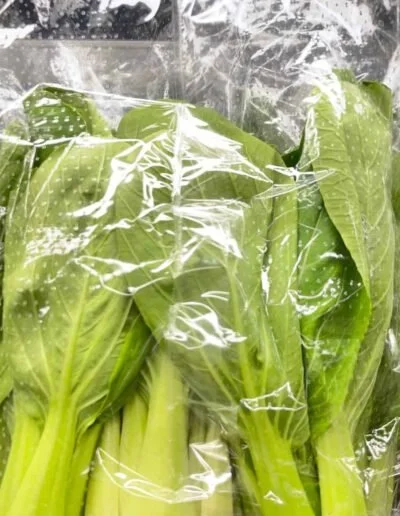

Food Packaging 🍎: In fresh produce and vacuum packs, micro-perforations precisely control gas exchange (O2, CO2) via Modified Atmosphere Packaging (MAP). This regulates respiration rates, inhibits microbial growth, and prevents condensation, significantly extending shelf-life and maintaining product integrity.
Medical Packaging ⚕️: Essential for sterile barrier systems, micro-perforations enable controlled sterilization gas penetration while maintaining microbial barrier properties. This ensures product safety and compliance with stringent regulatory standards.
Automotive Sector 🚗: Applied to ventilation films and seating materials, micro-perforations enhance breathability and comfort by facilitating air circulation and moisture dissipation, improving cabin climate control and material performance. Additionally, they contribute to the product’s aesthetic appeal by offering a clean, refined, and high-end look.
Textiles 👕: Micro-perforated fabrics offer enhanced breathability, moisture wicking, and comfort for sportswear, technical apparel, and footwear, improving thermal regulation and user experience.
Get expert advice for your Micro Perforation Needs
Choosing the ideal micro-perforating machine can be a complex decision, given the diverse technologies and material considerations involved. To ensure you select the perfect solution for your specific needs, we invite you to a free, no-obligation consultation with our experts. Benefit from personalized insights into how the right hot, cold, or laser perforation technology can optimize your production, enhance product quality, and drive efficiency, ensuring a smart investment tailored to your success.
