Precision at Speed: Redefining Scanning Laser Perforation with Spark Machinery
In the fast-paced world of flexible packaging and plastic converting, precision is everything. Whether you are engineering breathable films for Modified Atmosphere Packaging(MAP) to extend fresh food shelf life, or creating easy-tear solutions for consumer convenience, the quality of your laser makes all the difference.
At Spark Machinery, we continuously push the boundaries of laser converting. We understand that processing plastic films and metal barriers requires a delicate balance between high throughput, perfect accuracy, and material integrity. Because every converting line has unique requirements, there is no "one-size-fits-all" solution.
Tailored Lasers for Every Material
Different materials react uniquely to laser energy. To achieve pristine edges without charring or melting, matching the correct laser wavelength to the substrate is critical:
9.3 µm, 10.2 and 10.6 µm (CO2 Lasers): The absolute standard for plastics and polymers (such as PE, PET, PP, and BOPP), ensuring clean, high-absorption thermal cutting and drilling.
1.06 µm (Fiber Lasers): The ideal choice for aluminum foils and metallic barrier layers commonly used in high-protection flexible packaging.
Infinite Possibilities: Beyond Standard Micro-Holes
Laser processing is no longer limited to simple puncturing. With Spark Machinery’s technology, a single system can perform multiple operations on the fly:

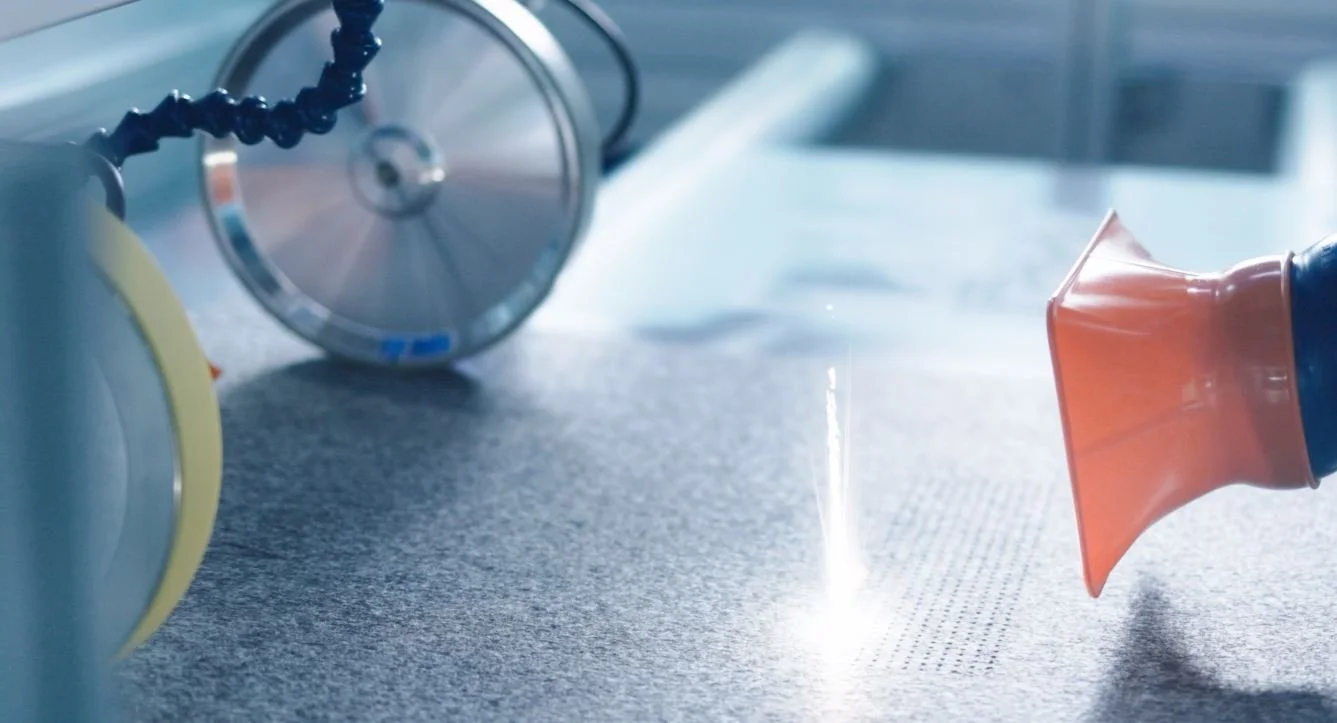

Micro-Perforations: Crisp, consistent holes for breathability.
Laser Scoring & Pre-cutting: Selective depth-cutting of specific film layers to create "easy-open" tear lines without compromising the barrier properties of the package.

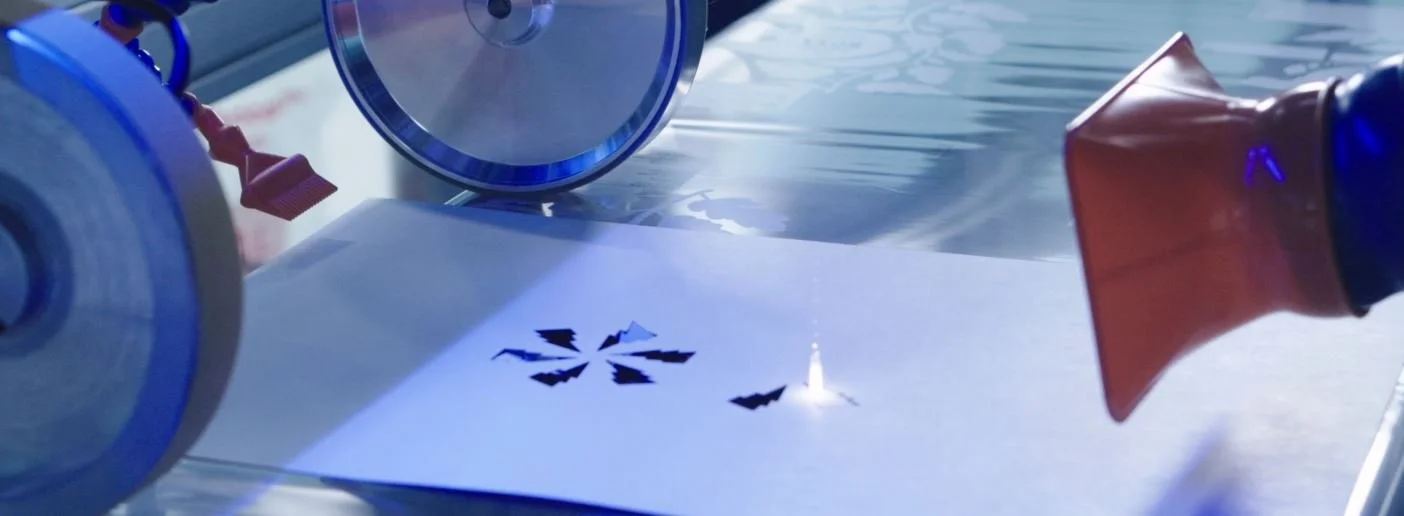

Complex Shapes & Large Holes: While non-scanning lasers are inherently bound by the fixed spot size of a single pulse, scanning technology removes all dimensional limits. Equipped with dynamic mirrors, these systems move the beam on the fly to 'draw' and cut custom shapes or larger holes of any diameter with flawless edge quality.
The Three Pillars of Spark Laser Perforators
To help you navigate your options, we design and integrate three distinct laser configurations:
1. Fixed Laser: The Cost-Effective Foundation
This is the most economical entry point into laser converting. The fixed laser is specifically designed for longitudinal applications—such as continuous scoring, pre-cutting, or straight-line micro-holes in the machine direction.
Max Speed: Up to 150 m/min
Min Hole Size: 50 µm
Best for: Simple, linear patterns and budget-conscious setups where cross-web flexibility is not required.
2. 1D Fixed Laser: High-Speed Vision Tracking
Taking the fixed laser concept a step further, the 1D system introduces intelligent automation. It features motorized film tracking paired with our advanced vision camera system. This ensures the laser perfectly follows the printed register marks or the web edge, even at high web speeds.
Max Speed: Up to 400 m/min
Min Hole Size: 50 µm
Best for: High-speed converting lines that require strict alignment and precision for longitudinal perforation.
3. 2D & 3D Scanning Laser Systems: Maximum Versatility & Large-Format Coverage
This is where true scanning technology shines. By dynamically steering the laser beam with high-speed galvo mirrors, scanning systems break free from strict linear paths. They allow for complex cross-web perforation patterns, dynamic shapes, and custom hole sizes across the web on the fly.
Working Areas: Highly scalable—from compact processing fields (50x50 mm, 110x110 mm, 200x200 mm, 300x300 mm) all the way to large-format wide-web coverage reaching up to 1800x1800 mm (With our 3D Scanning Laser System).
Max Speed: Up to 400 m/min
Best for: Applications requiring intricate cross-web layouts, custom shapes, or wide-web coverage without being restricted to fixed linear paths.
Closed-Loop Smart Vision: Flawless Execution, Guaranteed
Operating at high speeds means even a minor material variation can affect your output. To combat this, Spark Machinery offers an advanced, optional Vision Camera System (which comes standard on our 1D systems).
This is not just a passive monitoring camera. It operates with a real-time closed-loop feedback system.
The vision system continuously inspects the material and dynamically communicates with the laser controller. On the fly, it auto-adjusts:
Laser Firing Power: To compensate for material thickness variations.
Pulse Duration & Timing: To guarantee identical hole sizes and consistent scoring depths from the first meter of the roll to the last.
Focus Depth (only for 3D systems): To ensure the laser beam remains perfectly concentrated on the material surface.
The Spark Machinery Advantage
Choosing the right laser technology dictates the efficiency of your flexible packaging production. At Spark Machinery, our expertise lies in matching your specific materials—whether plastics, aluminum, or complex laminates—with the perfect laser configuration and control systems.
Ready to upgrade your converting line? Discover how Spark Machinery’s tailored laser solutions can boost your productivity and packaging quality. Contact our engineering team today by filling out the free quote form for a custom consultation or to schedule a material test at our facility.
Or write us for more information: info@sparkmachinery.com
